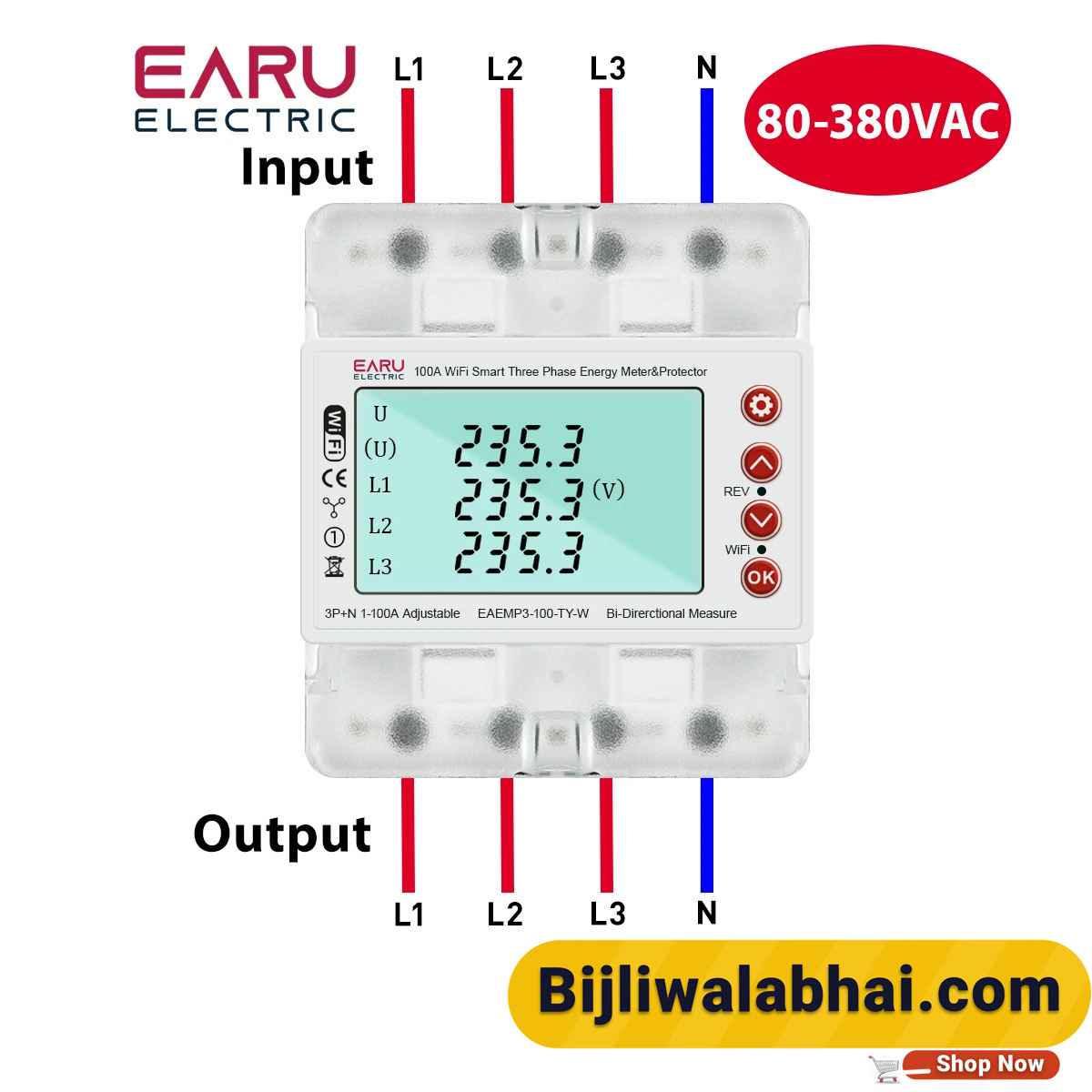

EARU 3 Phase Smart WIFI Meter 100A Bidirectional

3 Phase Smart WIFI Meter 100A Bidirectional

Note: In the event of single-phase availability, the device remains operational and delivers output power utilizing the active phase.

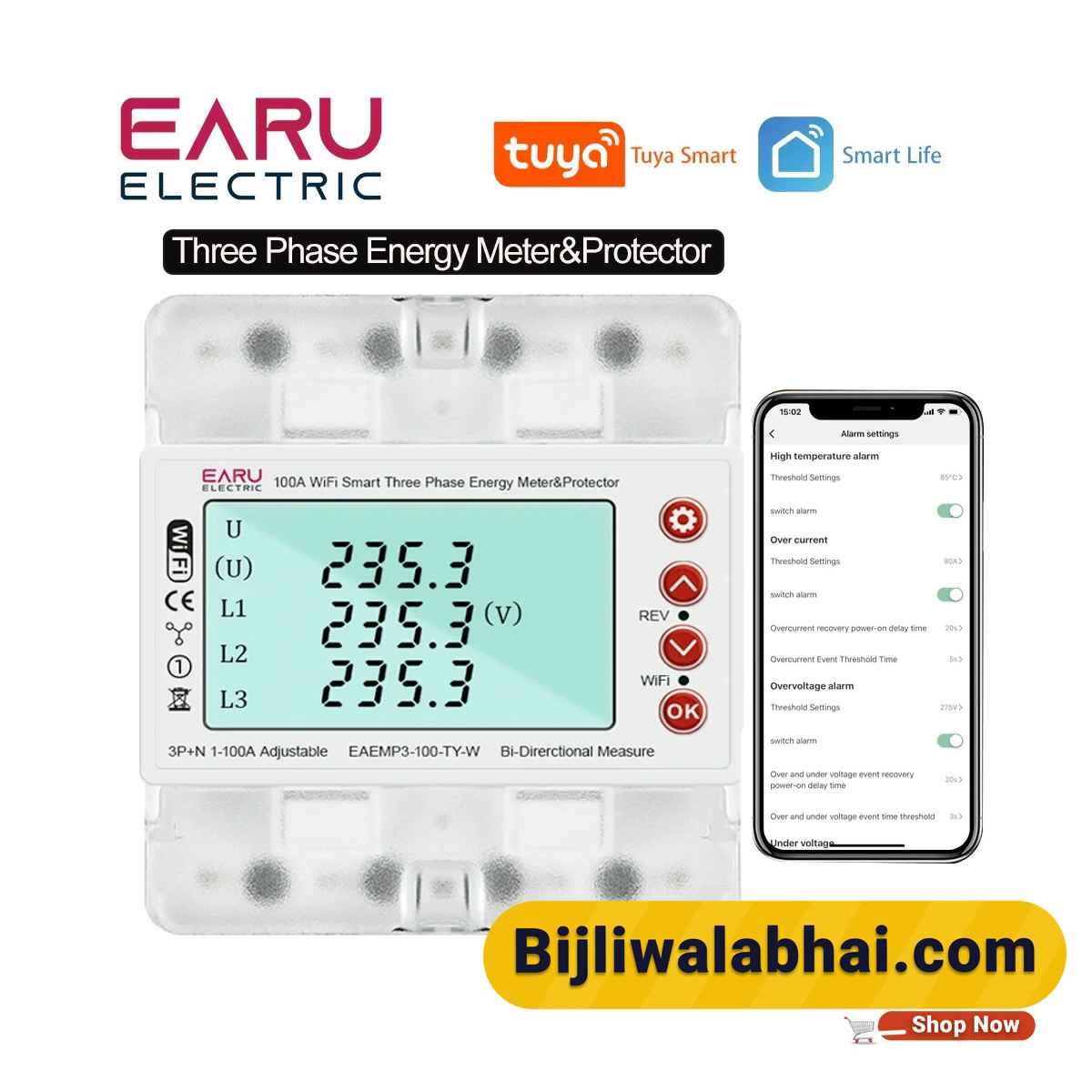

1. Remote control at any time from anywhere by SMART LIFE APP/ TUYA APP.

2. Timer: Timing, Countdown, Cycle Time

3. Voice control by Amazon Alexa / Google Assistant

Multi-Function Meter:

Bi-directional Measure

Total Energy KWh (Positive KWH+Negative KWH)

Total Reactive Energy KWH(Positive Reactive KWH+Negative Reactive KWH)

Voltage, Current, Active Power, Reactive Power, Power factor, Frequency

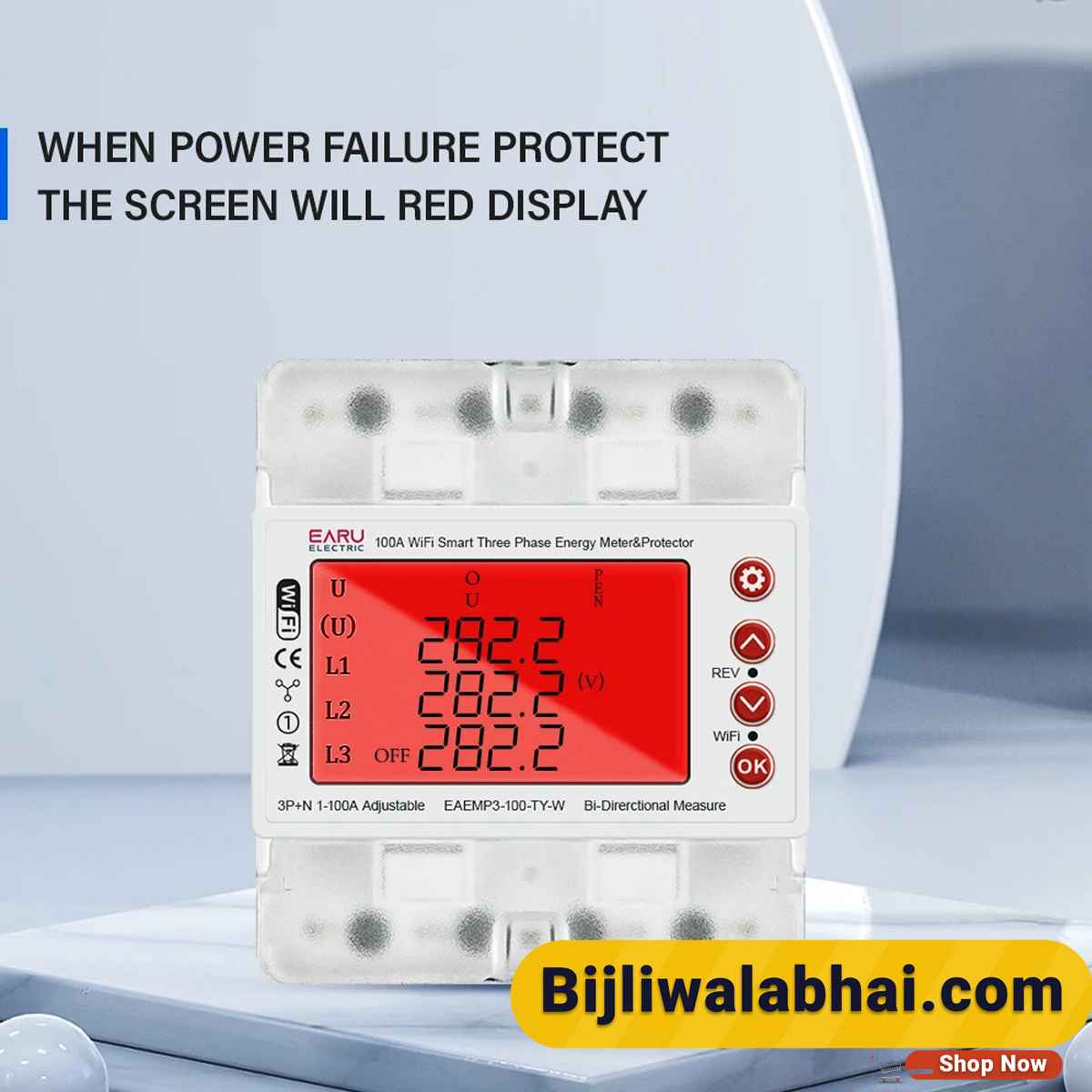

Protect Function:

1. Under voltage protection 60V-300V (adjustable) (default: 175V)
2. Over-voltage protection 60V-300V (adjustable) (default: 275V)
3. Over current protection 1A-100A (adjustable) (default: 80A)
4. Under current protection 1A-100A (adjustable) (default: close)
5. Voltage Unbalance Protect 10-100%(adjustable) (default: close)
6. Current Unbalance Protect 10-100%(adjustable) (default: close)
7. Over Temperature Protect 10-85℃(adjustable) (default: 85℃)
