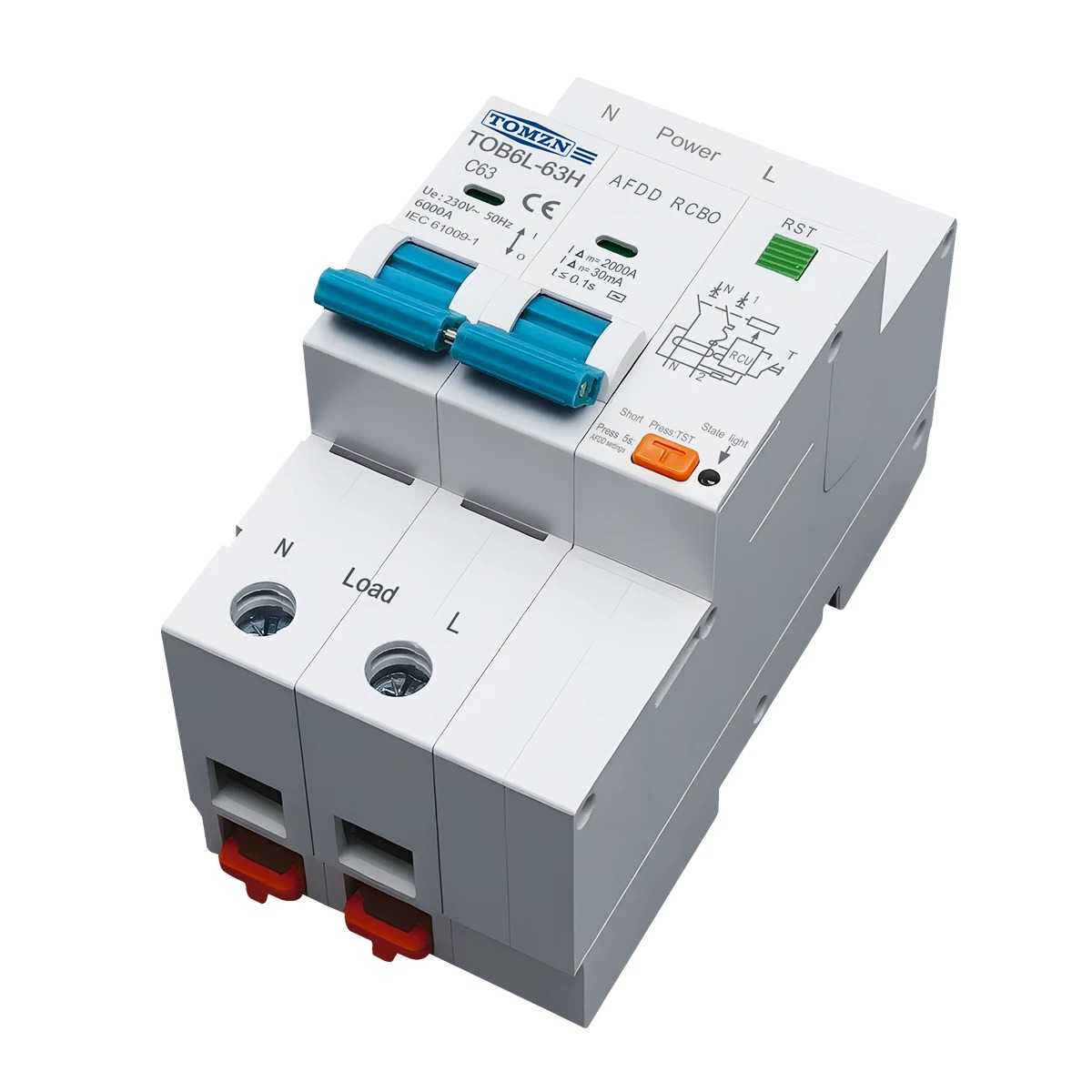

TOMZN AFDD RCBO 63A 30mA C63 – Arc Fault Detection, Overload, Short Circuit & Leakage Protection
₨6,500.00
63A AFDD RCBO + 30mA protection
| Specification | Details |
|---|---|
| Brand | TOMZN |
| Product Type | AFDD RCBO |
| Model | TOB6L-63H |
| Rated Current | 63A |
| Current Range | 16–63A |
| Leakage Protection | 30mA |
| Curve | C63 |
| Rated Voltage | 230V AC |
| Installation | 35mm DIN Rail |
| Protection | Arc Fault / Overload / Short Circuit / Residual Current |
| Connection | Dual-wire connection method |
1 in stock
Description
TOMZN AFDD RCBO 63A 30mA C63 – Advanced Arc Fault Protection
- 🔥 Arc Fault Protection
- ⚡ 63A Rated Current
- 🛡️ 30mA Residual Current Protection
- 🔌 C63 Characteristic
- ⚡ Overload Protection
- 🔥 Short-Circuit Protection
- 🏠 230V AC
- 🔧 35mm DIN Rail
- 🔄 RST Reset/Test Function
- 🔌 Dual-Wire Connection Method
The TOMZN AFDD RCBO 63A 30mA C63 is an advanced electrical protection device designed to provide multiple layers of protection in a single compact unit.
Unlike a conventional MCB, an AFDD (Arc Fault Detection Device) is designed to detect potentially dangerous electrical arc faults. Arc faults can generate excessive heat and may increase the risk of electrical fires if they remain undetected.
This TOMZN AFDD RCBO combines arc fault protection with overload, short-circuit and residual-current protection, making it a suitable choice for modern electrical distribution boards where enhanced circuit protection is required.
🔥 Key Features
Arc Fault Detection
Designed to detect potentially dangerous electrical arc faults and provide an additional layer of electrical safety.
30mA Residual Current Protection
Provides residual-current/leakage protection with a rated sensitivity of 30mA, according to the product specification.
63A Rated Current
Suitable for circuits requiring up to 63A rated protection.
C63 Characteristic
The product shown is marked C63, indicating a 63A C-characteristic protection configuration.
Overload & Short-Circuit Protection
Provides protection against overload and short-circuit conditions.
230V AC Operation
Designed for 230V AC electrical systems as shown in the product specification.
35mm DIN Rail Installation
Can be installed on a standard 35mm DIN rail inside a compatible distribution board.
🏠 Suitable Applications
- Residential electrical distribution boards
- Houses and apartments
- Shops and offices
- Commercial electrical installations
- Individual high-load circuits
- Electrical panels requiring additional arc-fault protection
- Modern electrical safety installations
Additional information
| Weight | 330 g |
|---|
